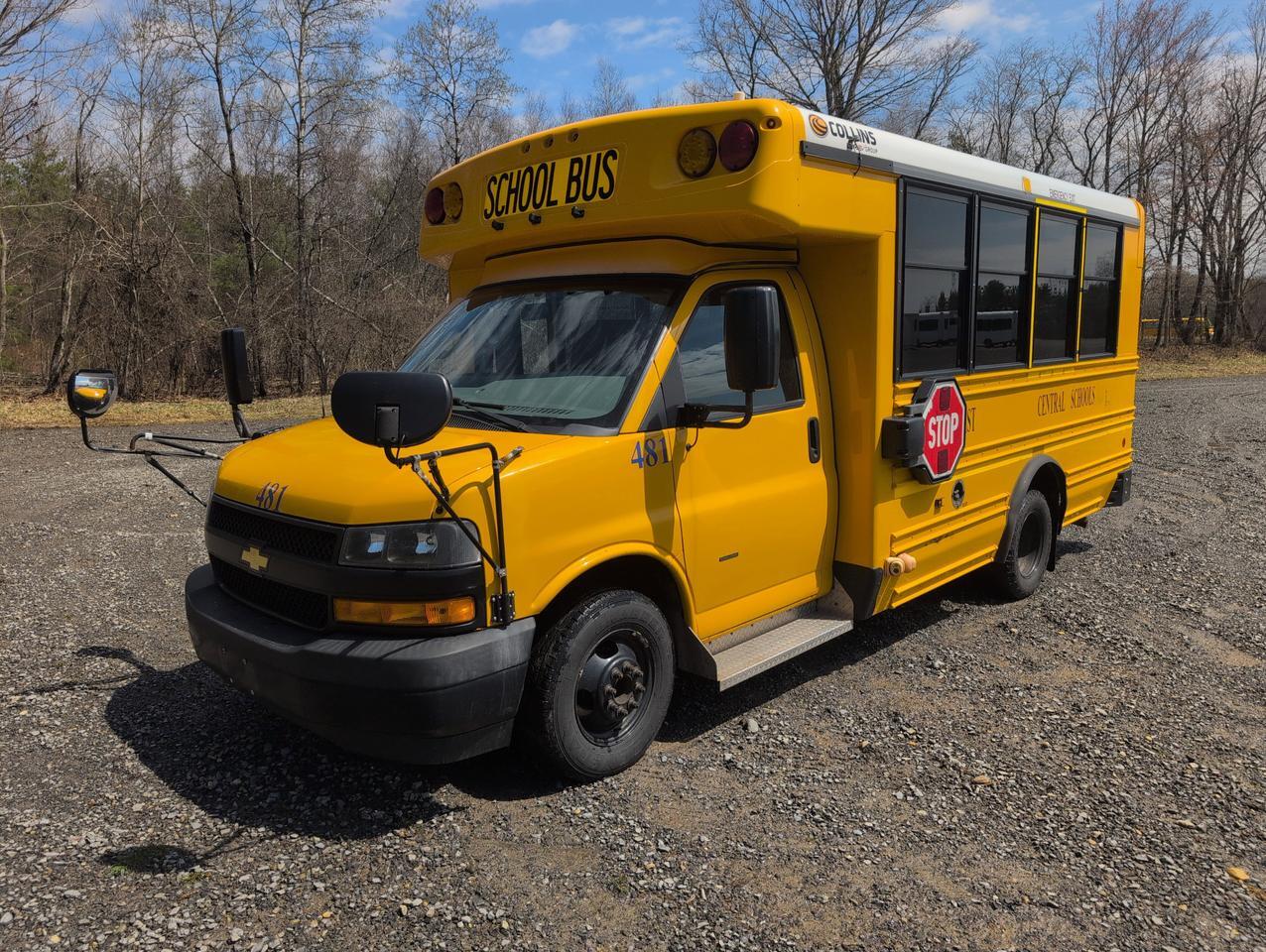

2020
Chevrolet
COLLINS
GAS V 8 Cyl
1HA3GRBG5LN003373
Vehicle info
Stock |
9511MZ |
VIN |
1HA3GRBG5LN003373 |
Dealer |
Don Brown Bus Sales |
Type |
Used |
Year |
2020 |
Make |
Chevrolet |
Model |
COLLINS |
Dealer Certified |
No |
Certified |
No |
Trim |
DRW |
Model Number |
CG33503 |
Body |
Cutaway |
Body Style |
Specialty |
Style |
3500 Van 139" |
Transmission |
Automatic |
Transmission Description |
6-Speed Automatic |
Doors |
2 |
Cylinders |
8 |
Displacement |
GAS |
Block Type |
V |
Aspiration Type |
Electronic Fuel Injection |
Description |
Gas V8 6.0L/364 |
Drivetrain |
RWD |
Fuel Type |
FLEX FUE |
Wheelbase Code |
139 |
Exterior Color |
Yellow |
Interior Color |
Medium Pewter |
Portions of the data provided are © 2026 Autodata, Inc. dba ChromeData
EQUIPMENT DETAIL
Exterior
- Bumper, front painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
- Flasher, heavy duty light emitting diode (LED)
- Glass, Solar-Ray light-tinted, all windows
- Grille, Black composite (Not available with (ZR7) Chrome Appearance Package.)
- Headlamps, dual halogen composite
- License plate kit, front
- Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
- Tires, front LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
- Tires, rear LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
- Wheel configuration, rear, single (Not available with (C7A) 10,000 lbs. (4536 kg) GVWR or (C7N) 12,300 lbs. (5579 kg.) GVWR.)
- Wheels, 4 -16" x 6.5" (40.6 cm x 16.5 cm), 8-lug painted steel, heavy-duty (Only available with (R04) single rear wheel configuration.)
- Wipers, front intermittent wet-arm with pulse washers
Installed
- 3500 VAN PREFERRED EQUIPMENT GROUP Includes Standard Equipment
- AIR CONDITIONING, SINGLE-ZONE MANUAL (STD)
- AIRBAG, FRONTAL, DRIVER SIDE ONLY
- ALTERNATOR, 220 AMPS
- AUDIO SYSTEM FEATURE, USB PORT
- AUDIO SYSTEM, AM/FM STEREO WITH CD/MP3 PLAYER USB port, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), TheftLock, random select, auxiliary jack and 2 front door speakers
- BATTERY, 770 COLD-CRANKING AMPS PRIMARY, ISOLATED 2ND HEAVY-DUTY 770 COLD-CRANKING AMPS allows 2nd battery to be used when the vehicle is not running without affecting ability to start the vehicle
- BODY, STANDARD (STD)
- BRAKE WARNING INDICATOR monitors brake system pressure, with loss of pressure an audible alarm (chime) and cluster telltale is lit
- CIRCUITS, STOP/TURN SIGNAL body control module calibration that allows the stop and turn signals to be operated separately
- DIFFERENTIAL, HEAVY-DUTY LOCKING REAR
- DOOR, PASSENGER SIDE DELETE, UPFITTER OPTION
- ENGINE, VORTEC 6.0L V8 (341 hp [254.3 kW] @ 5400 rpm, 373 lb-ft of torque [503.6 N-m] @ 4200 rpm) (Includes external oil cooler.
- GVWR, 12,300 LBS. (5579 KG) (Includes (R05) dual rear wheel configuration.
- HEADLINER DELETE WITH (9T7) RIGHT-HAND DOOR DELETE The headliner will be deleted only when (9T7) right-hand door delete is ordered also. It will come with sun visors and headliner wiring harness that is contented for dome light/Backup camera on rearview mirror/OnStar. These parts will be shipped loose.
- HORN, DUAL-NOTE HIGH AND LOW
- HVAC SYSTEM, AUXILIARY REAR HEATER PROVISIONS
- MEDIUM PEWTER, VINYL SEAT TRIM
- MIRROR, INSIDE REARVIEW (STD)
- ONSTAR, DELETE
- PAINTS, SOLID, WHEATLAND YELLOW All extraneous body components formerly color-keyed to body color, will be flat Black with SEO paint
- REAR AXLE, 3.73 RATIO
- REAR VISION CAMERA camera and cable shipped loose
- SCHOOL BUS PACKAGE chassis equipment with (UJ1) brake warning indicator Includes (ENC) HVAC system auxiliary rear heat provisions, (KW5) 220 amp alternator, (TP3) dual batteries (770 cca primary and 770 cca isolated) and (9L7) equipment accessory wiring junction block, (D31) inside rearview manual day/night mirror or (DRJ) inside rearview mirror with rear vision camera display, (U05) dual note horn and (V4D) stop/turn signal circuits.
- SEAT BELTS, ORANGE Provides high visibility front Orange seat belts in lieu of Dark Pewter
- SEATING ARRANGEMENT, DRIVER-ONLY HIGH-BACK BUCKET, ADJUSTABLE includes head restraint and vinyl or cloth trim (Includes (AJ3) driver-side only frontal airbag.
- SPECIAL EXTERIOR COLOR All normally body colored non-sheet metal parts will be flat Black.
- SPECIAL PAINT, SOLID, ONE COLOR
- STEERING COLUMN, TILT Tilt-steering column without cruise control
- TIRES, FRONT LT225/75R16E ALL-SEASON, BLACKWALL
- TIRES, REAR LT225/75R16E ALL-SEASON, BLACKWALL
- TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking, Powertrain Grade Braking, and Tap-Up/Tap-Down Driver Shift Control
- WHEEL CONFIGURATION, REAR, DUAL
- WHEELS, 6 - 16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL, HEAVY DUTY
- WHEELS, PAINTED BLACK IN LIEU OF STANDARD GRAY PAINTED WHEELS
- WIRING JUNCTION BLOCK, EQUIPMENT ACCESSORY Includes 2-30 amp circuits
Interior
- 4G LTE Wi-Fi Hotspot capable (Included and only available with (UE1) OnStar. Terms and limitations apply. See onstar.com or dealer for details.)
- Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
- Assist handles, driver and right-front passenger
- Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (U2K) SiriusXM Radio or (YF1) RV Package.)
- Chevrolet Connected Access capable (Included and only available with (UE1) OnStar. Subject to terms. See onstar.com or dealer for details.)
- Cup holders, 3 on the engine console cover
- Driver Information Center includes fuel range, average speed, oil life, fuel used, ice warning, engine hours, average fuel economy, tachometer and maintenance reminders
- Floor covering, Black rubberized-vinyl front
- Headliner, cloth, over driver and passenger
- Heater and defogger with front and side window defoggers
- Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure
- Lighting, interior with dome light and door handle-activated switches
- Mirror, inside rearview (Included and only available with (UVC) Rear Vision Camera.)
- Oil life monitor
- Power outlet, 120-volt
- Power outlets 2 auxiliary on engine console cover with covers, 12-volt
- Seating arrangement, driver and front passenger high-back bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal airbag.)
- Seats, front bucket with vinyl trim and head restraints includes inboard armrests (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats. Includes only driver high-back bucket seat with vinyl trim when ordered with (ZX1) driver-only high-back bucket seating arrangement.)
- Theft-deterrent system, vehicle, PASS-Key III
- Visors, driver and front passenger, cloth, padded
- Warning tones, headlamp on and key-in-ignition
Mechanical
- Alternator, 150 amps
- Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
- Body, standard
- Brakes, 4-wheel antilock, 4-wheel disc
- Cooling, external engine oil cooler
- Engine, 4.3L V6 with Direct Injection and Variable Valve Timing, includes aluminum block construction (276 hp [206 kW] @ 5200 rpm, 298 lb-ft of torque [404 Nm] @ 3900 rpm) (Requires (C4M) 9900 lbs. (4490 kg) GVWR, (C7A) 10,000 lbs. (4536 kg) GVWR or (JFF) 10,100 lb. (4581 kg) GVWR. Not available with (YF2) Ambulance Package, (YF1) RV Package, (ANC) Shuttle Bus Package or (C7N) 12,300 lbs. (5579 kg) GVWR. Includes external engine oil cooler. Reference the Engine/Axle page for availability.)
- Exhaust, aluminized stainless-steel muffler and tailpipe
- Frame, ladder-type
- Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)
- GVWR, 9900 lbs. (4490 kg) (Includes (R04) single rear wheel configuration. Not available with (R05) dual rear wheel combination. Reference the Engine/Axle page for availability.)
- Incomplete vehicle certification
- Rear axle, 3.42 ratio (Requires (R04) single rear wheel configuration.)
- Rear wheel drive
- Steering, power
- Suspension, front independent with coil springs and stabilizer bar
- Suspension, rear hypoid drive axle with multi-leaf springs
- Tow/haul mode selector, instrument panel-mounted
- Transmission oil cooler, external
- Transmission, 8-speed automatic electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking
Safety
- Airbag deactivation switch, frontal passenger-side (Not available with (AJ3) frontal, driver-side only airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
- Brake/transmission shift interlock for automatic transmissions
- Daytime Running Lamps
- Hill Start Assist
- Rear Vision Camera
- StabiliTrak, traction assistance and vehicle stability enhancement system
- Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)
