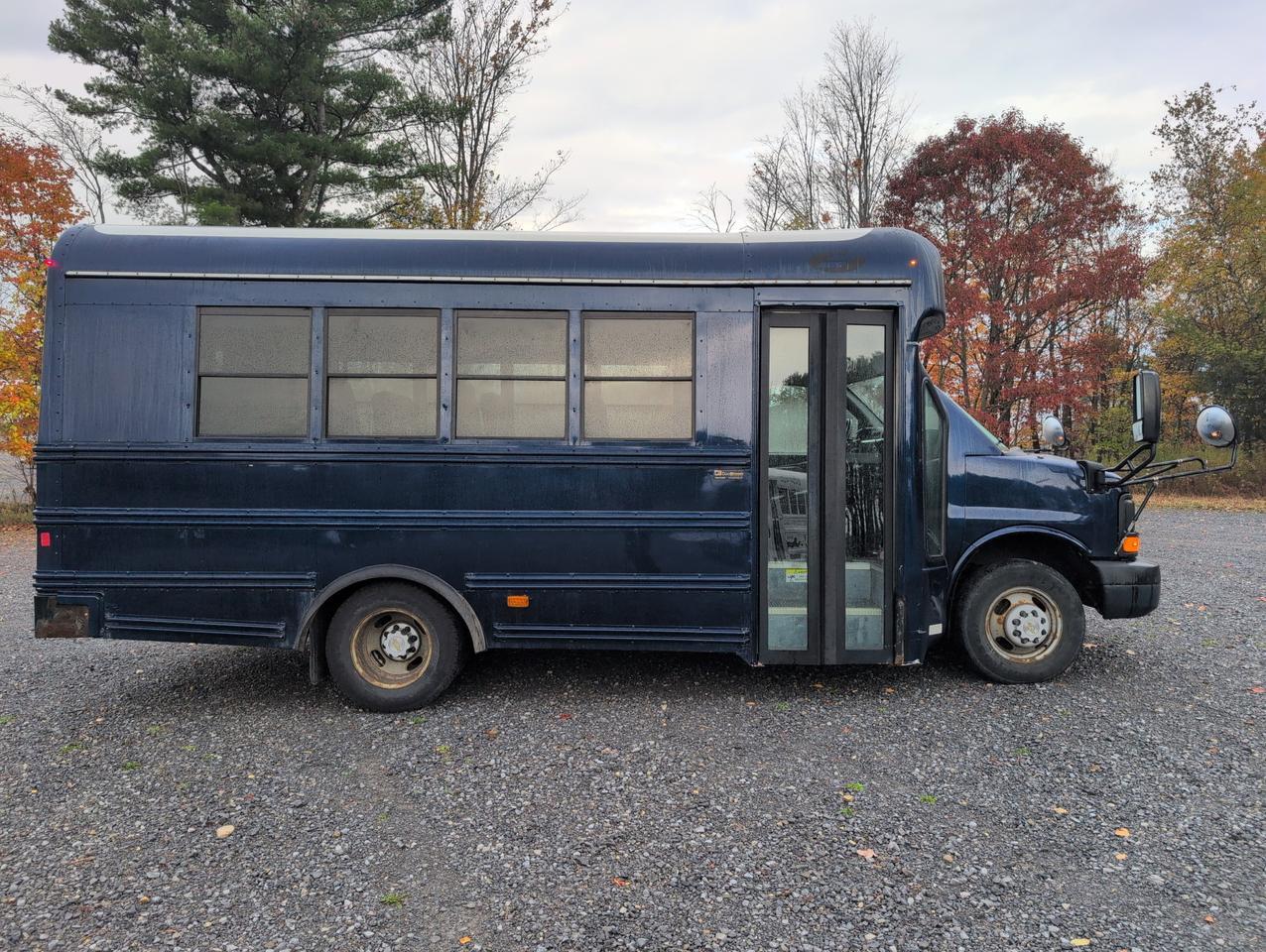

2016
Chevrolet
Starcraft
6.0L V 8 Cyl
1GB3G2BG5F1257368
Vehicle info
Stock |
9294MZT |
VIN |
1GB3G2BG5F1257368 |
Dealer |
Don Brown Bus Sales |
Type |
Used |
Year |
2016 |
Make |
Chevrolet |
Model |
Starcraft |
Dealer Certified |
No |
Certified |
No |
Trim |
XPRESS |
Model Number |
CG33503 |
Body |
SUBN |
Body Style |
Specialty |
Style |
3500 Van 139" |
Transmission |
Automatic |
Transmission Description |
6-Speed Automatic |
Doors |
2 |
Cylinders |
8 |
Displacement |
6.0L |
Block Type |
V |
Aspiration Type |
Electronic Fuel Injection |
Description |
Gas V8 6.0L/364 |
Drivetrain |
RWD |
Fuel Type |
FLEXFUEL |
Wheelbase Code |
139.00 |
Exterior Color |
Blue |
Interior Color |
Medium Pewter |
Portions of the data provided are © 2025 Autodata, Inc. dba ChromeData
EQUIPMENT DETAIL
Exterior
- Bumper, front painted Black with step-pad (Deleted when (ZR7) Appearance Package or (YF1) RV Package is ordered.)
- Flasher, heavy duty light emitting diode (LED), formerly known as SEO (8H9)
- Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
- License plate kit, front
- Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
- Tires, front LT245/75R16E all-season, blackwall (Included and only available with CG33503 or CG33803 and (C4M) 9900 lbs. (4490 kg.) GVWR or (JFF) 10,100 lbs. (4581 kg.) GVWR. Jack and spare tire equipment bracket are not included.)
- Tires, rear LT245/75R16E all-season, blackwall (Included and only available with CG33503 or CG33803 and (C4M) 9900 lbs. (4490 kg.) GVWR or (JFF) 10,100 lbs. (4581 kg.) GVWR. Jack and spare tire equipment bracket are not included.)
- Wheel configuration, rear, single (Standard on CG33503 model. Available on CG33803 model. Not available with (9N2) 10,050 lbs. (4559 kg.) or (C7N) 12,300 lbs. (5579 kg.) GVWR.)
- Wheels 16" x 6.5" (40.6 cm x 16.5 cm) steel (Only available with (R04) single rear wheel configuration.)
- Wipers, front intermittent wet-arm with pulse washers
Installed
- 1WT PREFERRED EQUIPMENT GROUP Includes Standard Equipment
- AIR BAG, FRONTAL, DRIVER-SIDE ONLY
- AIR CONDITIONING, SINGLE-ZONE MANUAL (STD)
- AUDIO SYSTEM, RADIO PROVISIONS DELETE. On vehicles without (YF1) RV Package specified, this option deletes (UXZ) radio provisions only and replaces the alarm chimes with the base buzzer
- BODY, SOFT-MOUNT DONUT AND BOLT (for mounting Upfit body to chassis)
- BODY, STANDARD (STD)
- BRAKE WARNING INDICATOR monitors brake system pressure, with loss of pressure an audible alarm (chime) and cluster telltale is lit
- CIRCUITS, STOP/TURN SIGNAL body control module calibration that allows the stop and turn signals to be operated separately
- DOOR, PASSENGER SIDE DELETE, UPFITTER OPTION
- ENGINE, VORTEC 6.0L V8 (342 hp [255.0 kW] @ 5400 rpm, 373 lb-ft of torque [503.6 N-m] @ 4400 rpm)
- FUEL, ADDITIONAL 3-GALLONS 3 gallons of fuel in addition to normal assembly plant fill
- GVWR, 12,300 LBS. (5579 KG)
- HORN, DUAL-NOTE HIGH AND LOW
- HVAC SYSTEM, AUXILIARY PROVISIONS
- MEDIUM PEWTER, CUSTOM CLOTH SEAT TRIM
- MIRROR, INSIDE REARVIEW MANUAL DAY/NIGHT
- PAINT, SOLID
- REAR AXLE, 3.73 RATIO
- SCHOOL BUS PACKAGE chassis equipment with (UJ1) brake warning indicator Includes (ENC) HVAC system auxiliary rear heat provisions. CG33803 models with (L20) Vortec 4.8L V8 SFI engine will not include (ENC) HVAC system auxiliary rear heat provisions. Includes (D31) inside rearview manual day/night mirror and (U05) dual note horn and (V4D) stop/turn signal circuits. With (R05) dual rear wheel configuration, includes (XHF) LT225/75R16E All Season front tires.
- SEATING ARRANGEMENT, DRIVER-ONLY HIGH-BACK BUCKET includes head restraint and vinyl or cloth trim Includes (AJ3) driver-side only frontal air bag.
- SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM, HEAD RESTRAINTS AND INBOARD ARMRESTS
- STEERING COLUMN, TILT Tilt-steering column without cruise control
- SUMMIT WHITE
- TIRES, FRONT LT225/75R16E ALL-SEASON, BLACKWALL
- TIRES, REAR LT225/75R16E ALL-SEASON, BLACKWALL
- TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)
- VISORS, DRIVER AND FRONT PASSENGER, VINYL in lieu of standard cloth
- WHEEL CONFIGURATION, REAR, DUAL
- WHEELS, 6 - 16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL, HEAVY DUTY

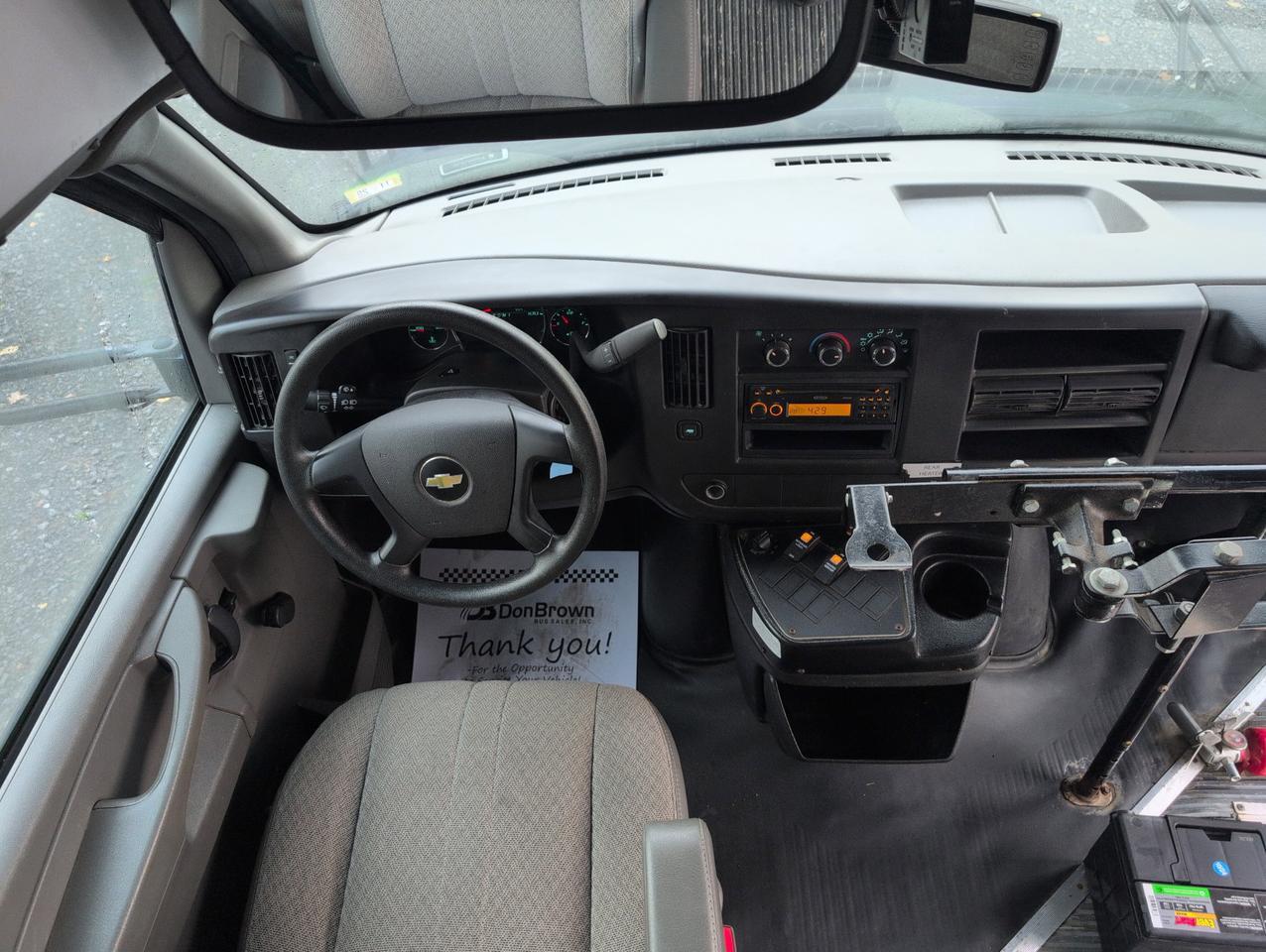

Interior
- Air conditioning, single-zone manual
- Assist handle, front passenger
- Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers (Not available with (U0F) AM/FM stereo with MP3 player, (U0H) AM/FM stereo with MP3 player and USB port, (US8) AM/FM stereo with CD/MP3 player, (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UL5) radio delete.)
- Cup holders, 3 on the engine console cover
- Defogger, side windows
- Driver Information Center includes fuel range, average speed, oil life, fuel used, ice warning, engine hours, average fuel economy, tachometer and maintenance reminders.
- Floor covering, Black rubberized-vinyl front
- Headliner, cloth, over driver and passenger
- Heater and defogger with front and side window defoggers

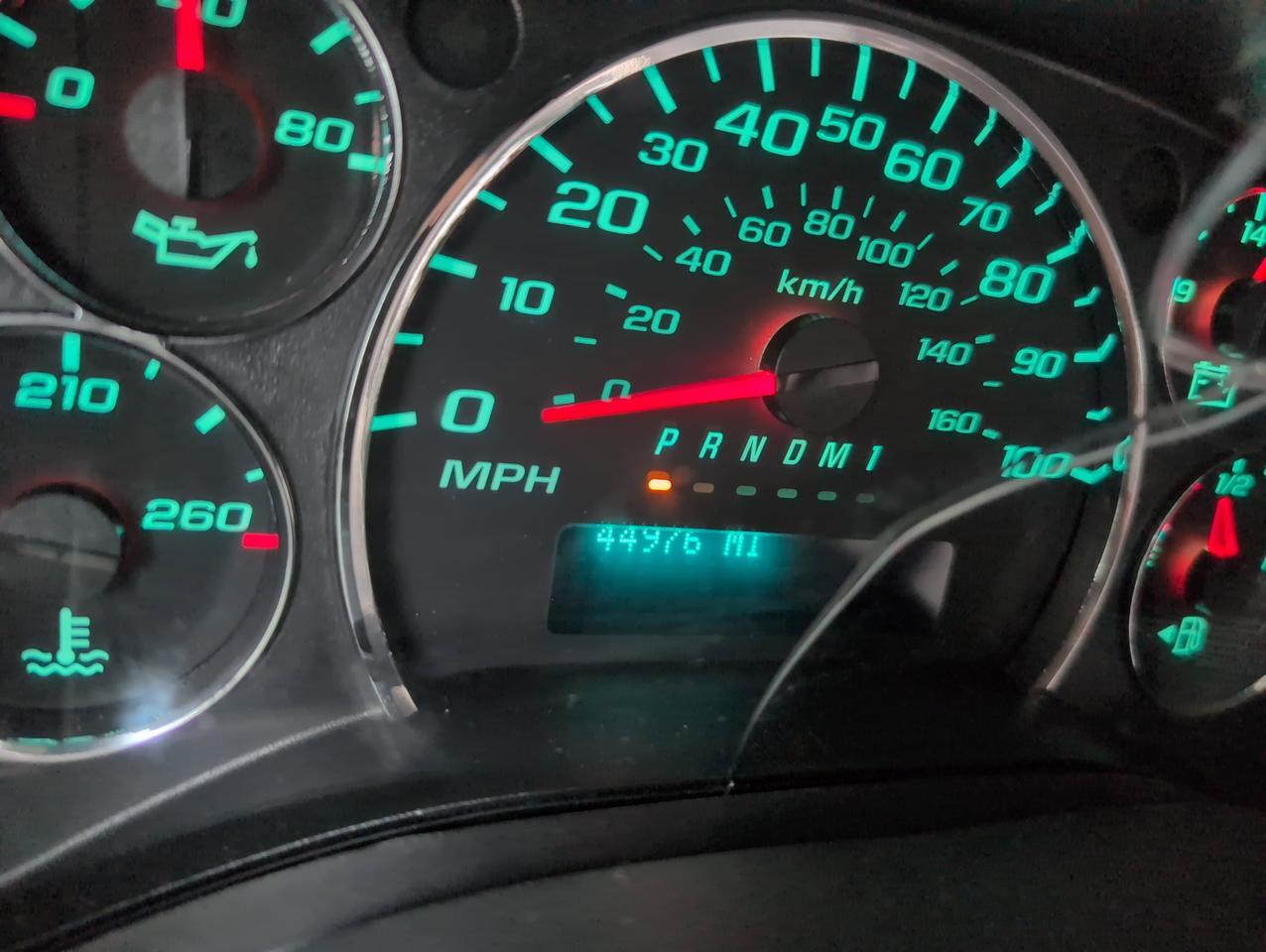

- Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure
- Lighting, interior with dome light and door handle-activated switches
- Oil life monitor
- Power outlet, 120-volt
- Power outlets 2 auxiliary on engine console cover with covers, 12-volt
- Seating arrangement, driver and front passenger highback bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal air bag.)
- Theft-deterrent system, vehicle, PASS-Key III
- Visors, driver and front passenger, cloth, padded
- Warning tones, headlamp on and key-in-ignition
Mechanical
- Alternator, 145 amps
- Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
- Body, standard
- Brakes, 4-wheel antilock, 4-wheel disc
- Engine, Vortec 4.8L V8 SFI (285 hp [212.5 kW] @ 5400 rpm, 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (Standard on the CG33503 and CG33803 models. With CG33503 requires (C4M) 9900 lbs. (4490 kg) GVWR or (9N2) 10,050 lbs. (4559 kg) GVWR. With CG33803 model requires (9N2) 10,050 lbs. (4559 kg) GVWR or (JFF) 10,100 lbs (4581 kg) GVWR. Not available on the CG33903 model. Not available with (YF1) RV Package, (ANC) Shuttle Bus Package or (C7N) 12,300 lbs. (5579 kg) GVWR. Not available with (ENC) HVAC system auxiliary rear heat provisions on CG33803 models. Includes external engine oil cooler. Reference the Engine/Axle page for availability.)
- Exhaust, aluminized stainless-steel muffler and tailpipe
- Frame, ladder-type
- Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)
- GVWR, 9900 lbs. (4490 kg) (Standard on the CG33503 model. Available on the CG33803 model. Requires (R04) single rear wheel configuration. Not available with (R05) dual rear wheel configuration. Reference the Engine/Axle page for availability.)
- Incomplete vehicle certification
- Rear axle, 3.42 ratio (Requires CG33503 or CG33803 model and (L20) Vortec 4.8L V8 SFI engine or (L96) Vortec 6.0L V8 SFI engine and (C4M) 9900 lbs. (4490 kg) GVWR or (JFF) 10,100 lbs. (4581 kg) GVWR.)
- Rear wheel drive
- Steering, power
- Suspension, front independent with coil springs and stabilizer bar
- Suspension, rear hypoid drive axle with multi-leaf springs
- Tow/haul mode selector, instrument panel-mounted
- Transmission oil cooler, external
- Transmission, 6-speed automatic, heavy-duty electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (Reference the Engine/Axle page for availability.)
Safety
- Air bag deactivation switch, frontal, passenger-side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
- Brake/transmission shift interlock for automatic transmissions
- Daytime Running Lamps
- Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels. Not available with CG33803 models or CG33903 models.)
