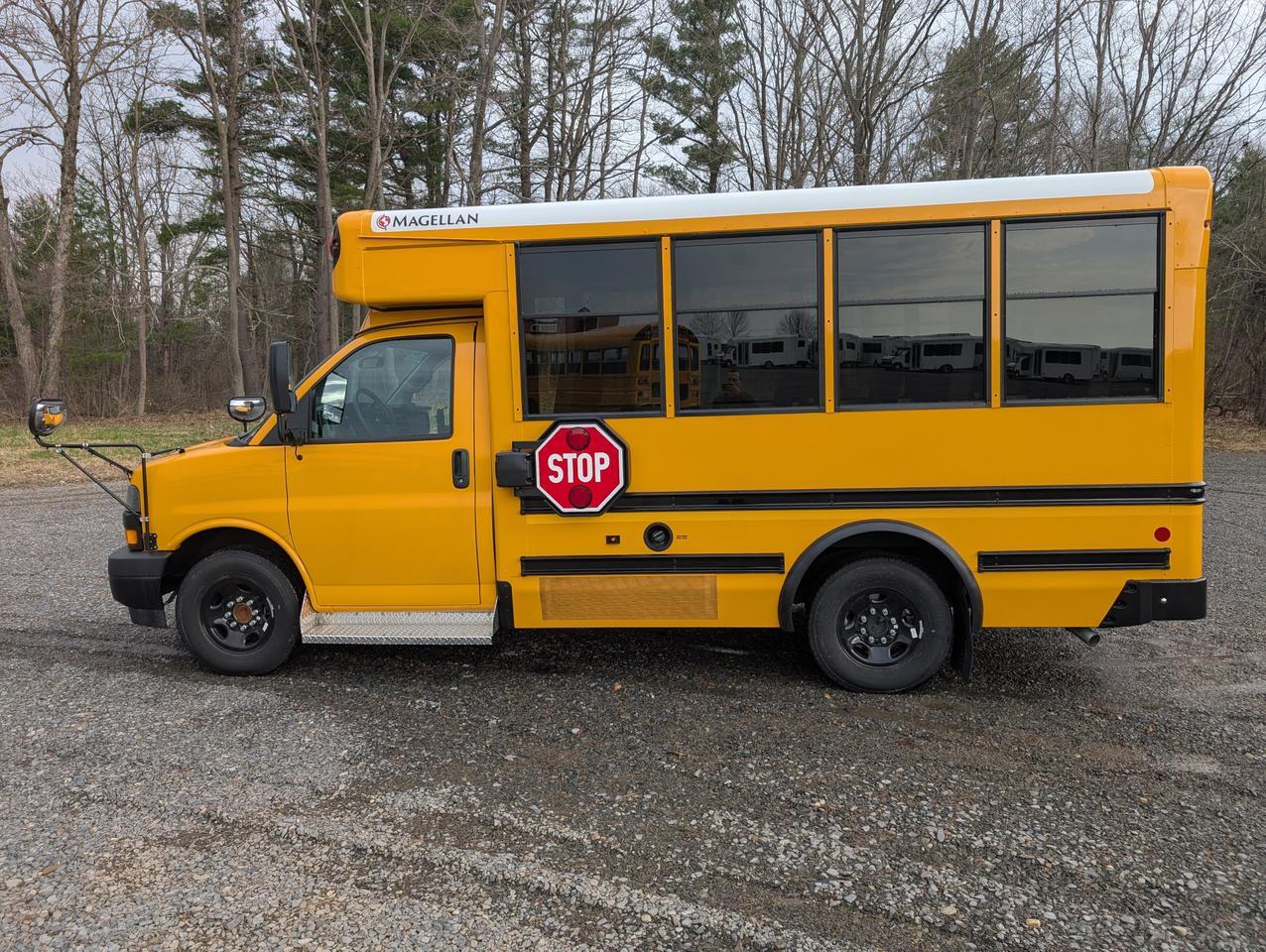

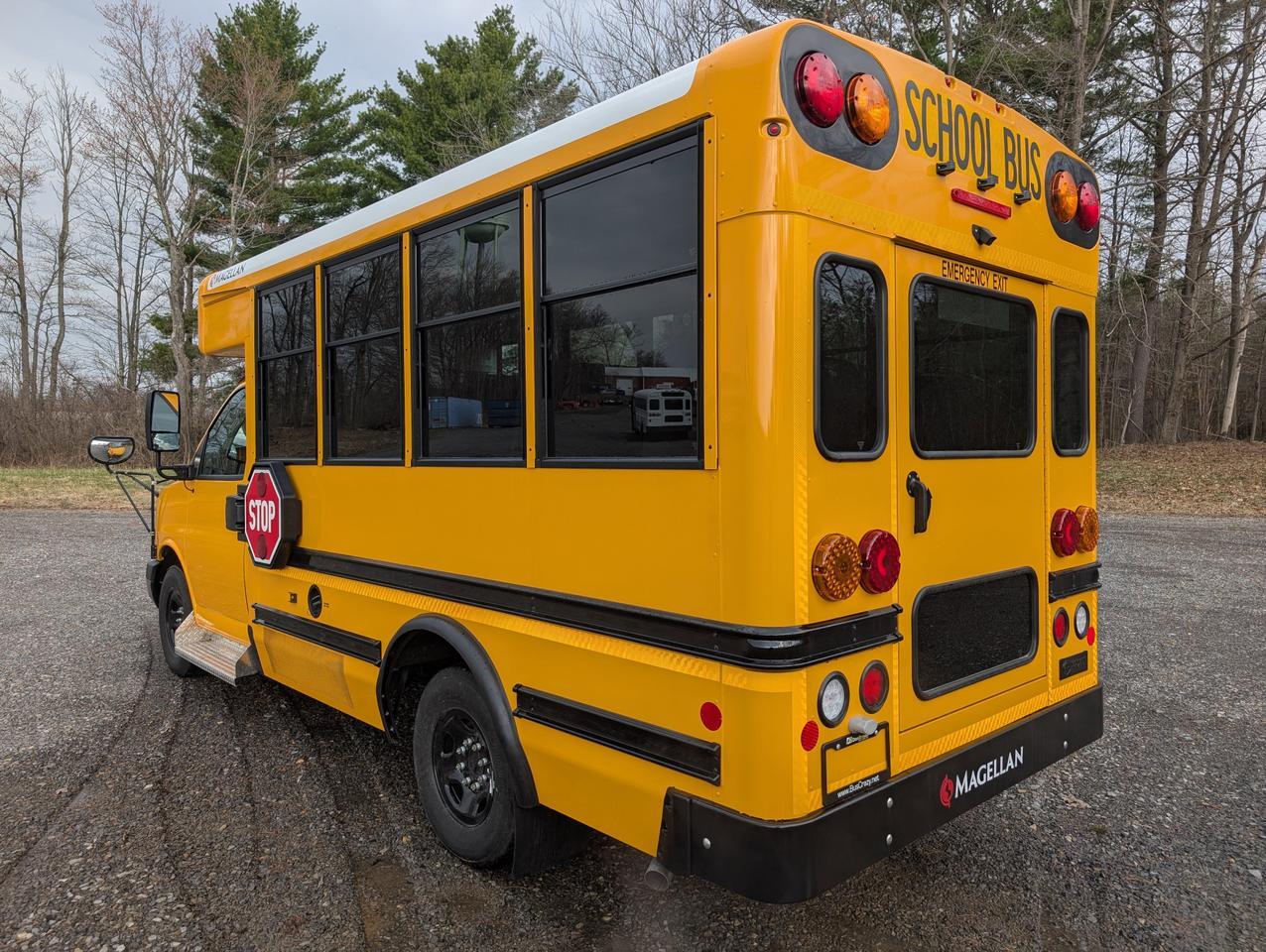

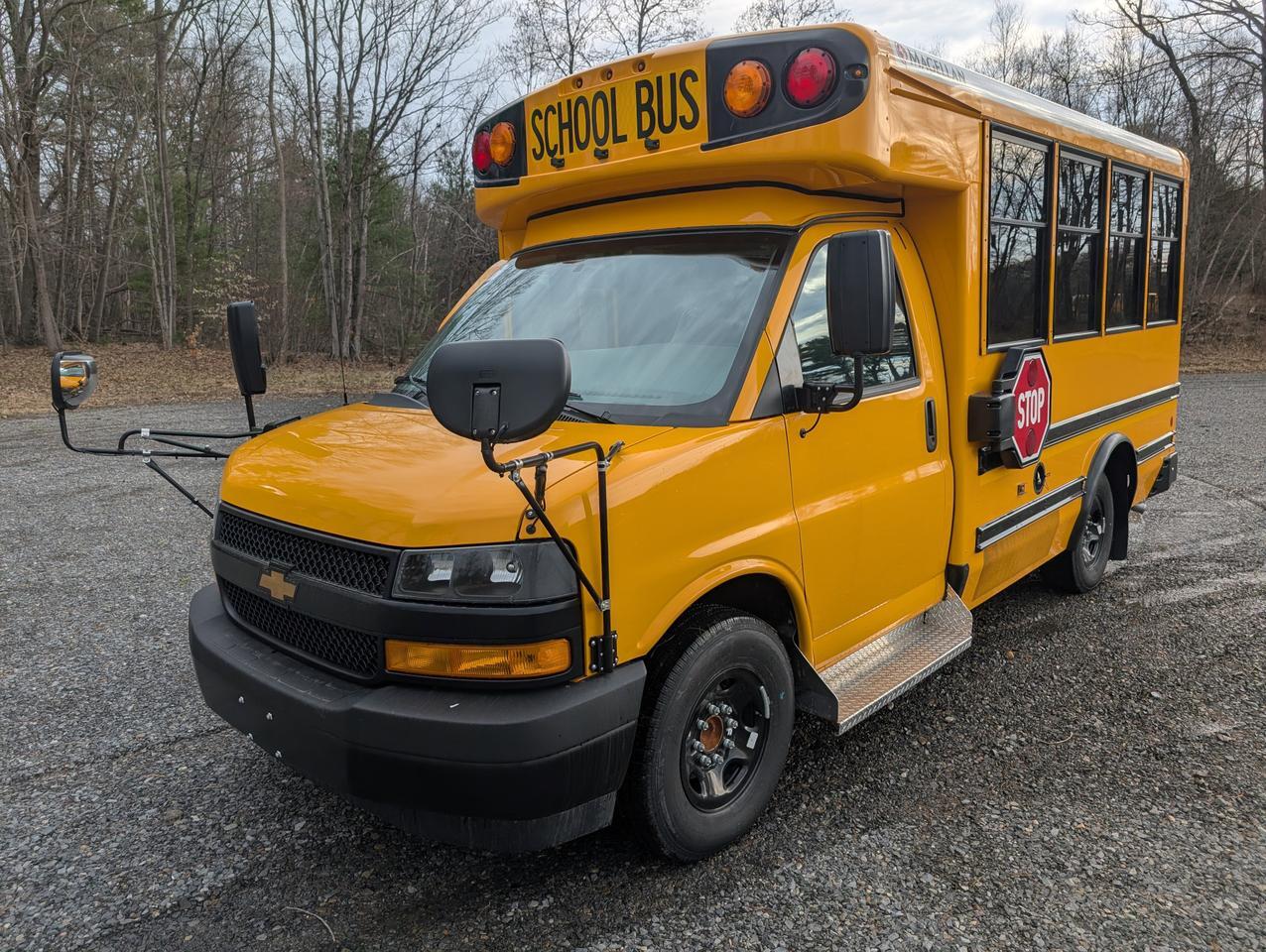

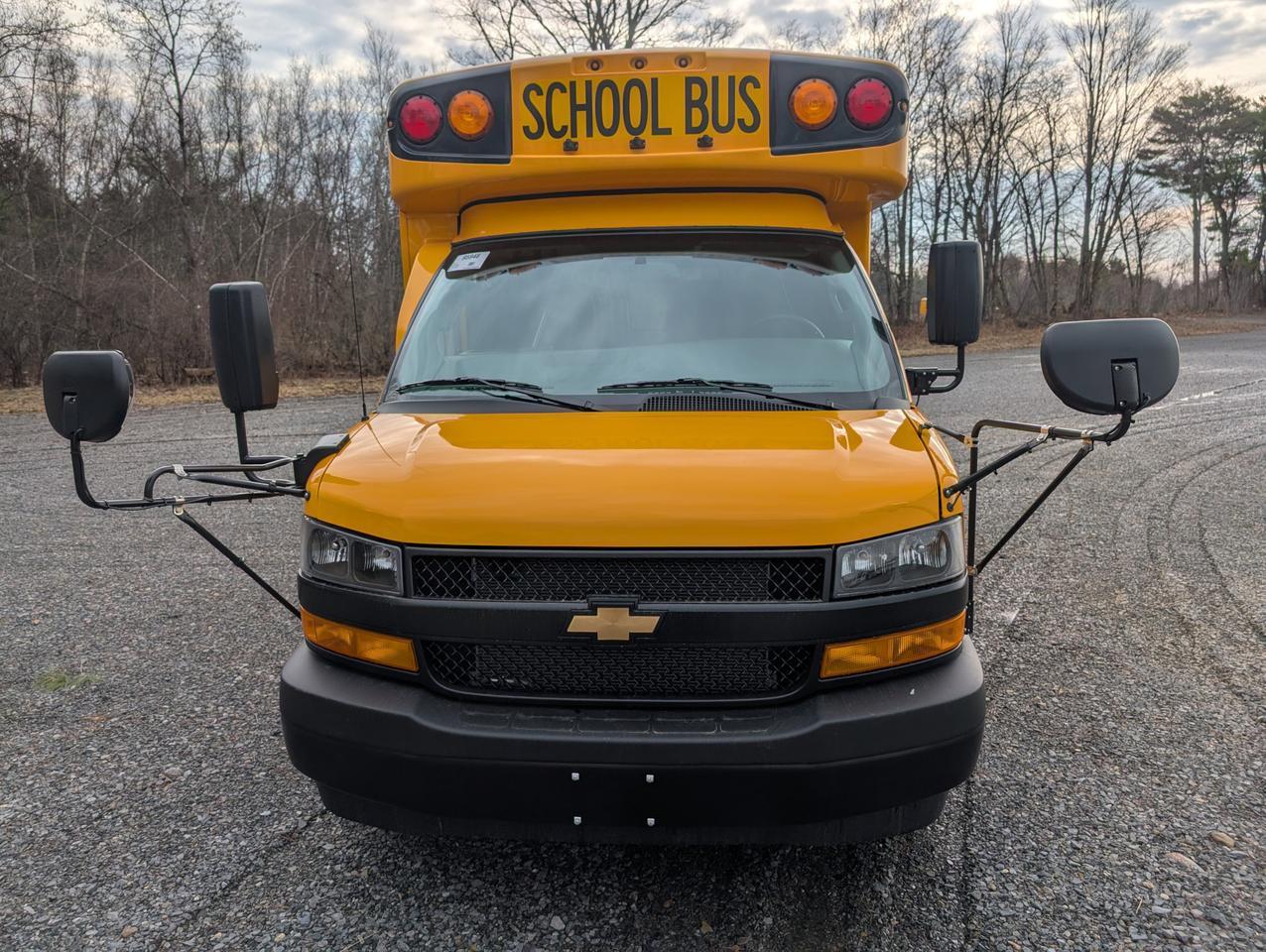

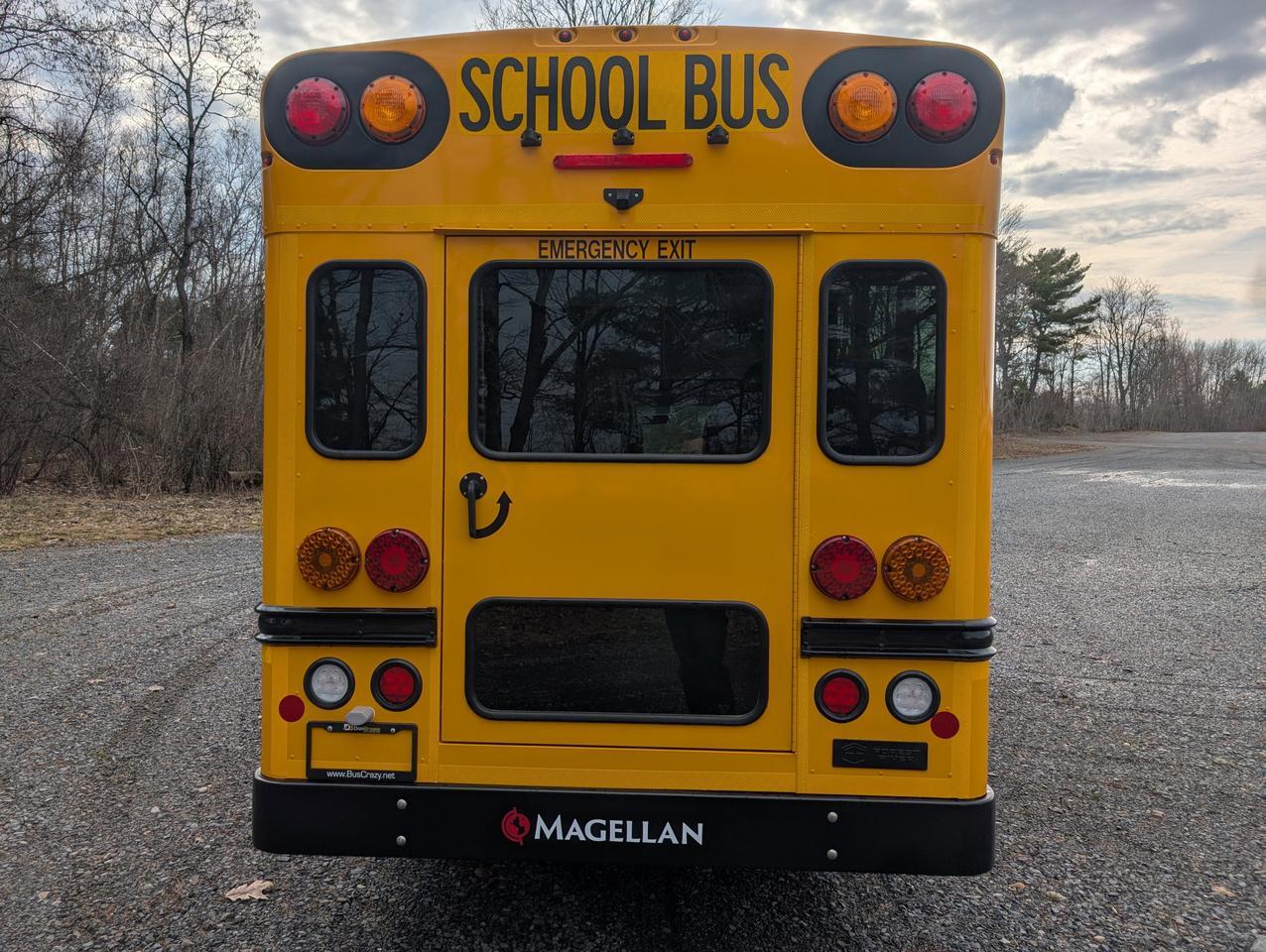

2028 Chevrolet Magellan SRW

Call For Price

Request MORE INFO

OR

CALL US NOW
Fields marked with asterisk (*) are required
Text Yourself a Link
Value Trade
2028
Chevrolet
Magellan SRW
1HA3GRB76TN001650

Vehicle info

Stock
 96100
VIN
 1HA3GRB76TN001650
Dealer
 Don Brown Bus Sales
Type
 New
Year
 2028
Make
 Chevrolet
Model
 Magellan SRW
Dealer Certified
 No
Certified
 No

EQUIPMENT DETAIL

Installed Packages & Accessories
Total $4,088
  • Body, Standard
    $0
  • Wheel Configuration, Rear, Single
    $0
  • Engine, 6.6L V8
    $1,895
  • Transmission, 8-Speed Automatic, Heavy-Duty
    electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking, Powertrain Grade Braking, and Tap-Up/Tap-Down Driver Shift Control
    $0
  • Gvwr, 10,100 Lbs. (4581 Kg)
    (Includes (R04) single rear wheel configuration.
    $300
  • Rear Axle, 3.42 Ratio
    $0
  • Work Van Preferred Equipment Group
    Includes standard equipment
    $0
  • Wheels, 4 - 16" X 6.5" (40.6 Cm X 16.5 Cm), 8-Lug Painted Steel, Heavy-Duty
    $0
  • Tires, Front Lt245/75R16E All-Season, Blackwall
    Jack and spare tire equipment bracket are not included.)
    $0
  • Tires, Rear Lt245/75R16E All-Season, Blackwall
    Jack and spare tire equipment bracket are not included.)
    $0
  • Medium Pewter, Vinyl Seat Trim
    $0
  • Seating Arrangement, Driver-Only High-Back Bucket, Adjustable
    $340
  • Audio System, Am/Fm Stereo With Mp3 Player
    seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers
    $0
  • School Bus Package
    $610
  • Driver Convenience Package
    includes Tilt-Wheel and (K34) cruise control
    $400
  • Emission System, 10K-14K Gvw
    $0
  • Battery, 770 Cold-Cranking Amps Primary, Isolated 2Nd Heavy-Duty 770 Cold-Cranking Amps
    allows 2nd battery to be used when the vehicle is not running without affecting ability to start the vehicle
    $0
  • Alternator, 220 Amps
    $150
  • Wiring Junction Block Equipment Accessory
    includes 2-30 amp circuits
    $0
  • Circuits, Stop/Turn Signal
    body control module calibration that allows the stop and turn signals to be operated separately
    $65
  • Brake Warning Indicator
    monitors brake system pressure, with loss of pressure an audible alarm (chime) and cluster telltale is lit
    $65
  • Cruise Control
    $0
  • Hvac System, Auxiliary Rear Heater Provisions
    $0
  • Airbag, Frontal, Driver Side Only
    $0
  • Onstar, Delete
    (Required on all orders placed after 11/13/25.)
    $0
  • Horn, Dual-Note High And Low
    $15
  • Wheels, Painted Black In Lieu Of Standard Gray Painted Wheels
    $58
  • Paints, Solid, Wheatland Yellow
    All extraneous body components formerly color-keyed to body color, will be flat Black with SEO paint
    $0
  • Special Exterior Color
    All normally body colored non-sheet metal parts will be flat Black.
    $0
  • Special Paint, Solid, One Color
    $0
  • Door, Passenger Side Delete, Upfitter Option
    $140
  • Headliner Delete With (9T7) Right-Hand Door Delete
    The headliner will be deleted only when (9T7) right-hand door delete is ordered also. It will come with sun visors and headliner wiring harness that is contented for dome light/Backup camera on rearview mirror/OnStar. These parts will be shipped loose.
    $10
  • Seat Belts, Orange
    Provides high visibility front Orange seat belts in lieu of Dark Pewter
    $40

Standard Equipment

Exterior
  • Bumper, front painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
  • Flasher, heavy duty light emitting diode (LED)
  • Glass, Solar-Ray light-tinted, all windows
  • Grille, Black composite (Not available with (ZR7) Chrome Appearance Package.)
  • Headlamps, dual halogen composite
  • License plate kit, front
  • Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
  • Tires, front LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
  • Tires, rear LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
  • Wheel configuration, rear, single (Not available with (C7N) 12,300 lbs. (5579 kg.) GVWR.)
  • Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm), 8-lug painted steel, heavy-duty (Only available with (R04) single rear wheel configuration.)
  • Wipers, front intermittent wet-arm with pulse washers
Show more Show less
Installed
  • AIRBAG, FRONTAL, DRIVER SIDE ONLY
  • ALTERNATOR, 220 AMPS
  • AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (STD)
  • BATTERY, 770 COLD-CRANKING AMPS PRIMARY, ISOLATED 2ND HEAVY-DUTY 770 COLD-CRANKING AMPS allows 2nd battery to be used when the vehicle is not running without affecting ability to start the vehicle
  • BODY, STANDARD (STD)
  • BRAKE WARNING INDICATOR monitors brake system pressure, with loss of pressure an audible alarm (chime) and cluster telltale is lit
  • CIRCUITS, STOP/TURN SIGNAL body control module calibration that allows the stop and turn signals to be operated separately
  • CRUISE CONTROL
  • DOOR, PASSENGER SIDE DELETE, UPFITTER OPTION
  • DRIVER CONVENIENCE PACKAGE includes Tilt-Wheel and (K34) cruise control
  • EMISSION SYSTEM, 10K-14K GVW
  • ENGINE, 6.6L V8 with Direct Injection and Variable Valve Timing, gasoline, (401 hp [299 kW] @ 5200 rpm, 464 lb-ft of torque [629 N-m] @ 4000 rpm) (Includes external oil cooler.
  • GVWR, 10,100 LBS. (4581 KG) (Includes (R04) single rear wheel configuration.
  • HEADLINER DELETE WITH (9T7) RIGHT-HAND DOOR DELETE The headliner will be deleted only when (9T7) right-hand door delete is ordered also. It will come with sun visors and headliner wiring harness that is contented for dome light/Backup camera on rearview mirror/OnStar. These parts will be shipped loose.
  • HORN, DUAL-NOTE HIGH AND LOW
  • HVAC SYSTEM, AUXILIARY REAR HEATER PROVISIONS
  • MEDIUM PEWTER, VINYL SEAT TRIM
  • ONSTAR, DELETE (Required on all orders placed after 11/13/25.)
  • PAINTS, SOLID, WHEATLAND YELLOW All extraneous body components formerly color-keyed to body color, will be flat Black with SEO paint
  • REAR AXLE, 3.42 RATIO
  • SCHOOL BUS PACKAGE chassis equipment with (UJ1) brake warning indicator Includes (ENC) HVAC system auxiliary rear heat provisions, (KW5) 220 amp alternator, (TP3) dual batteries (770 cca primary and 770 cca isolated) and (9L7) equipment accessory wiring junction block, (D31) inside rearview manual day/night mirror or (DRJ) inside rearview mirror with rear vision camera display, (U05) dual note horn and (V4D) stop/turn signal circuits.
  • SEAT BELTS, ORANGE Provides high visibility front Orange seat belts in lieu of Dark Pewter
  • SEATING ARRANGEMENT, DRIVER-ONLY HIGH-BACK BUCKET, ADJUSTABLE includes head restraint and vinyl or cloth trim (Includes (AJ3) driver-side only frontal airbag.
  • SPECIAL EXTERIOR COLOR All normally body colored non-sheet metal parts will be flat Black.
  • SPECIAL PAINT, SOLID, ONE COLOR
  • TIRES, FRONT LT245/75R16E ALL-SEASON, BLACKWALL (STD) Jack and spare tire equipment bracket are not included.)
  • TIRES, REAR LT245/75R16E ALL-SEASON, BLACKWALL (STD) Jack and spare tire equipment bracket are not included.)
  • TRANSMISSION, 8-SPEED AUTOMATIC, HEAVY-DUTY electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking, Powertrain Grade Braking, and Tap-Up/Tap-Down Driver Shift Control
  • WHEEL CONFIGURATION, REAR, SINGLE (STD)
  • WHEELS, 4 - 16" X 6.5" (40.6 CM X 16.5 CM), 8-LUG PAINTED STEEL, HEAVY-DUTY (STD)
  • WHEELS, PAINTED BLACK IN LIEU OF STANDARD GRAY PAINTED WHEELS
  • WIRING JUNCTION BLOCK EQUIPMENT ACCESSORY includes 2-30 amp circuits
  • WORK VAN PREFERRED EQUIPMENT GROUP Includes standard equipment
Show more Show less
Interior
  • Air conditioning, single-zone manual
  • Assist handles, driver and right-front passenger
  • Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers
  • Cup holders, 3 on the engine console cover
  • Driver Information Center includes fuel range, average speed, oil life, fuel used, ice warning, engine hours, average fuel economy, tachometer and maintenance reminders
  • Floor covering, Black rubberized-vinyl front
  • Headliner, cloth, over driver and passenger
  • Heater and defogger with front and side window defoggers

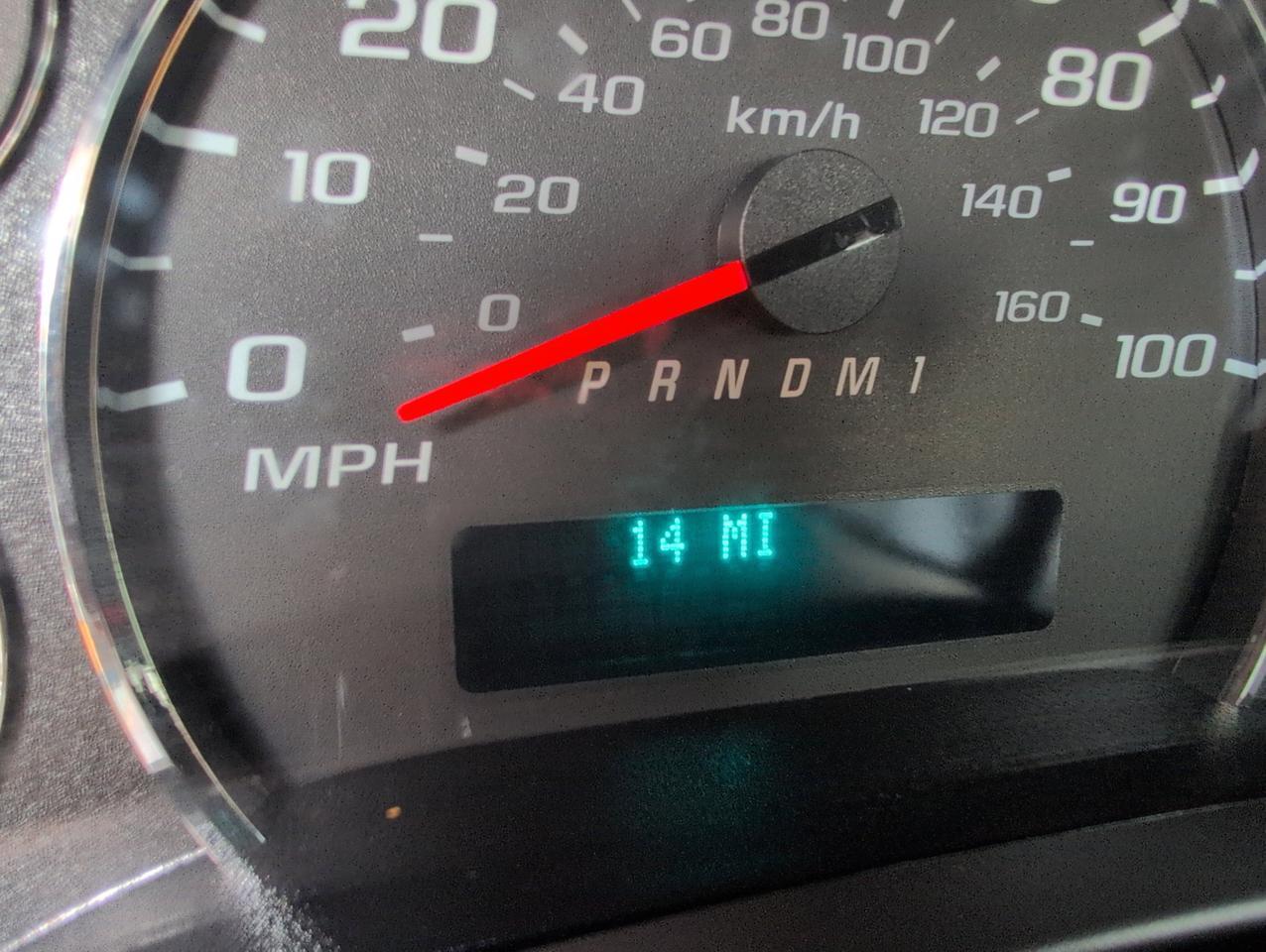

  • Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure
  • Lighting, interior with dome light and door handle-activated switches
  • Mirror, inside rearview includes Rear Vision Camera display (Included and only available with (UVC) Rear Vision Camera.)
  • Oil life monitor
  • Power outlet, 120-volt
  • Power outlets 2 auxiliary on engine console cover with covers, 12-volt
  • Seating arrangement, driver and front passenger high-back bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal airbag.)
  • Seats, front bucket with vinyl trim and head restraints includes inboard armrests (Requires (**W) trim. Not available with (ZP0) delete driver and passenger seats. Includes only driver high-back bucket seat with vinyl trim when ordered with (ZX1) driver-only high-back bucket seating arrangement.)
  • Theft-deterrent system, vehicle, PASS-Key III
  • Visors, driver and front passenger, cloth, padded
  • Warning tones, headlamp on and key-in-ignition
Show more Show less
Mechanical
  • Alternator, 150 amps
  • Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
  • Body, standard
  • Brakes, 4-wheel antilock, 4-wheel disc
  • Cooling, external engine oil cooler
  • Emission System, 8.5K-10K GVW (Requires (FE9) Federal emissions requirements, (YF5) California state emissions requirements or (NE1) Colorado, Connecticut, Delaware, Maine, Maryland, Massachusetts, Minnesota, Nevada, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont or Washington state emissions requirements.)
  • Engine, 4.3L V6 with Direct Injection and Variable Valve Timing, includes aluminum block construction (276 hp [206 kW] @ 5200 rpm, 298 lb-ft of torque [404 Nm] @ 3900 rpm) (Requires (C4M) 9900 lbs. (4490 kg) GVWR. Not available with (YF2) Ambulance Package, (YF1) RV Package, (ANC) Shuttle Bus Package, (JFF) 10,100 lb. (4581 kg) GVWR or (C7N) 12,300 lbs. (5579 kg) GVWR. Includes external engine oil cooler. Reference the Engine/Axle page for availability.)
  • Exhaust, aluminized stainless-steel muffler and tailpipe
  • Frame, ladder-type
  • Fuel tank capacity, mid-frame and approximately 32 gallons (121.1L)
  • GVWR, 9900 lbs. (4490 kg) (Includes (R04) single rear wheel configuration. Not available with (R05) dual rear wheel combination. Reference the Engine/Axle page for availability.)
  • Incomplete vehicle certification
  • Rear axle, 3.42 ratio (Requires (R04) single rear wheel configuration.)
  • Rear wheel drive
  • Steering, power
  • Suspension, front independent with coil springs and stabilizer bar
  • Suspension, rear hypoid drive axle with multi-leaf springs
  • Tow/haul mode selector, instrument panel-mounted
  • Transmission, 8-speed automatic electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking, Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control (Reference the Engine/Axle page availability.)
Show more Show less
Safety
  • Airbag deactivation switch, frontal passenger-side (Not available with (AJ3) frontal, driver-side only airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
  • Airbags, seat-mounted side-impact for driver and right-front passenger and roof-rail mounted head-curtain side-impact (Included with (C4M) 9900 lb. (4490 kg) GVWR. Available on (JFF) 10100 lb. (4581 kg) GVWR, (C7N) 12300 lb. (5579 kg) GVWR, and (C7I) 14200 lb. (6441 kg) GVWR. Not available with (B3D) School Bus Package, (ANC) Shuttle Bus Package, (YF1) RV Package, and (9T7) right-hand door delete. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
  • Brake/transmission shift interlock for automatic transmissions
  • Daytime Running Lamps
  • Hill Start Assist
  • OnStar and Chevrolet connected services capable (Currently not available to order. Not available with (YF1) RV Package or (YF2) Ambulance Package. Included with (FDR) Fleet Daily Rental order types. Terms and limitations apply. See onstar.com or dealer for details.)
  • Rear Vision Camera camera and cable shipped loose (Display included with (DRJ) inside rearview mirror.)
  • StabiliTrak, traction assistance and vehicle stability enhancement system
  • Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)
Show more Show less
